Resource Information

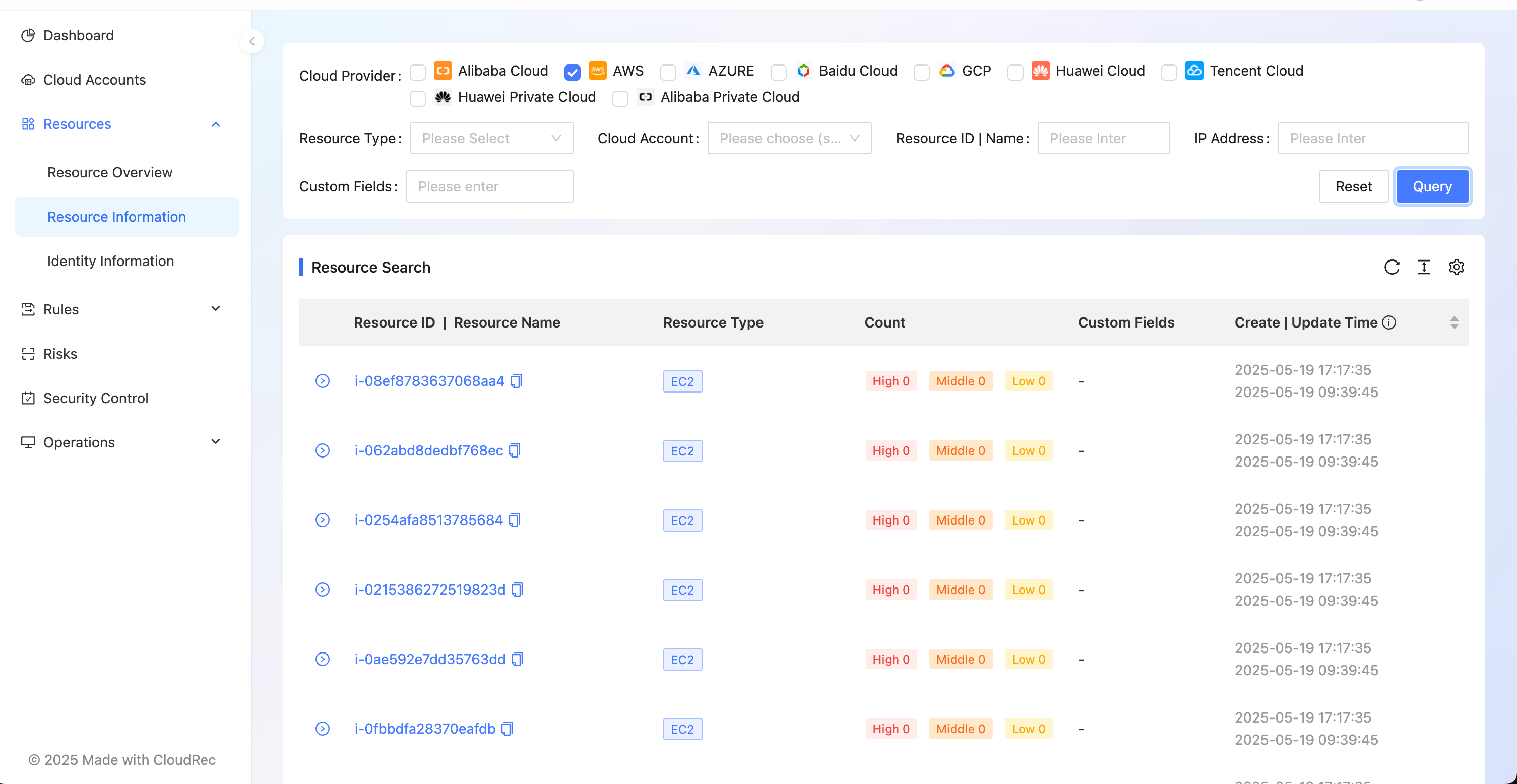

Resource Information is a module for querying resource details.

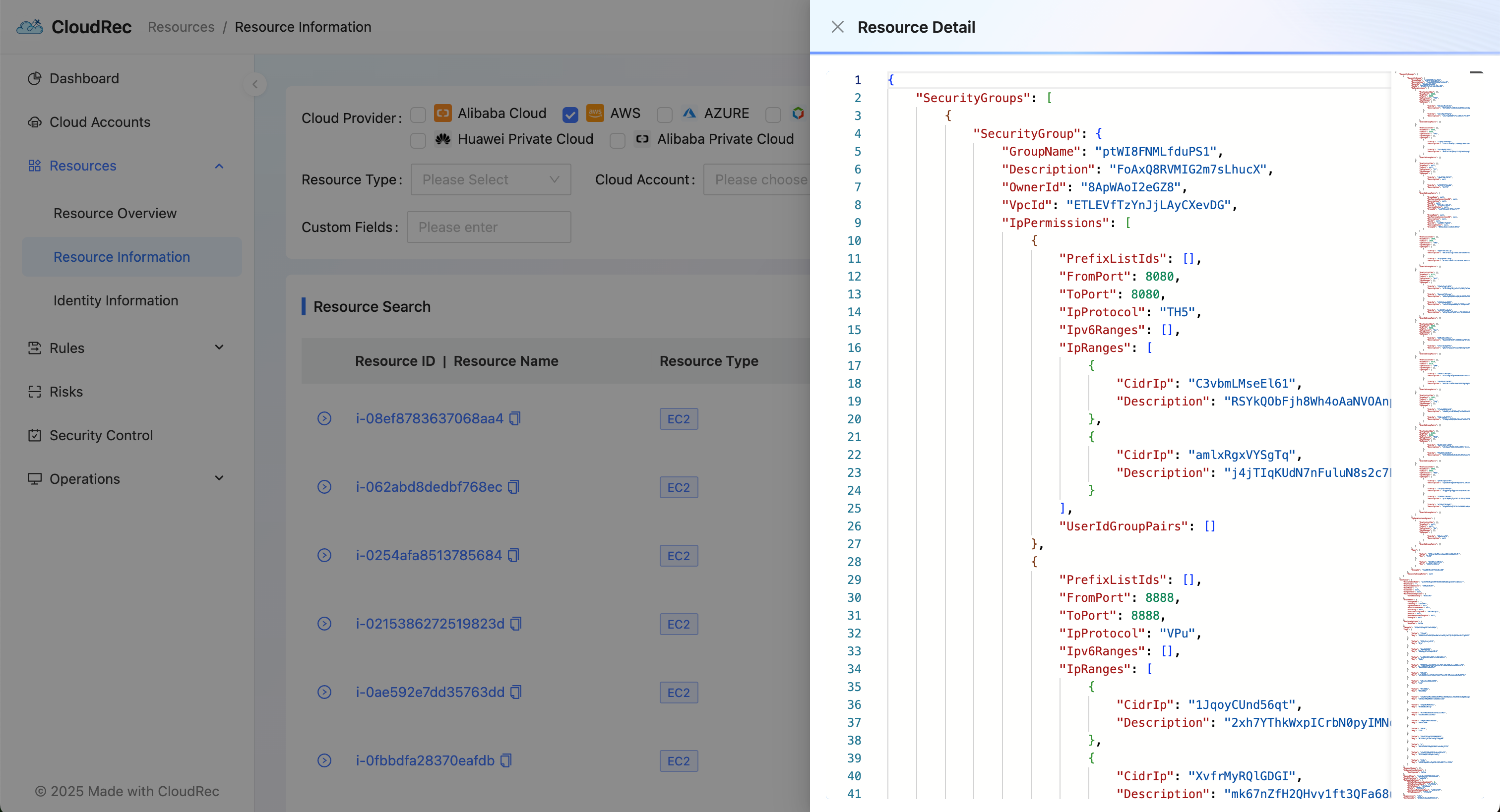

Click on resource name, the metadata JSON details of the resource will pop up from the right sidebar.

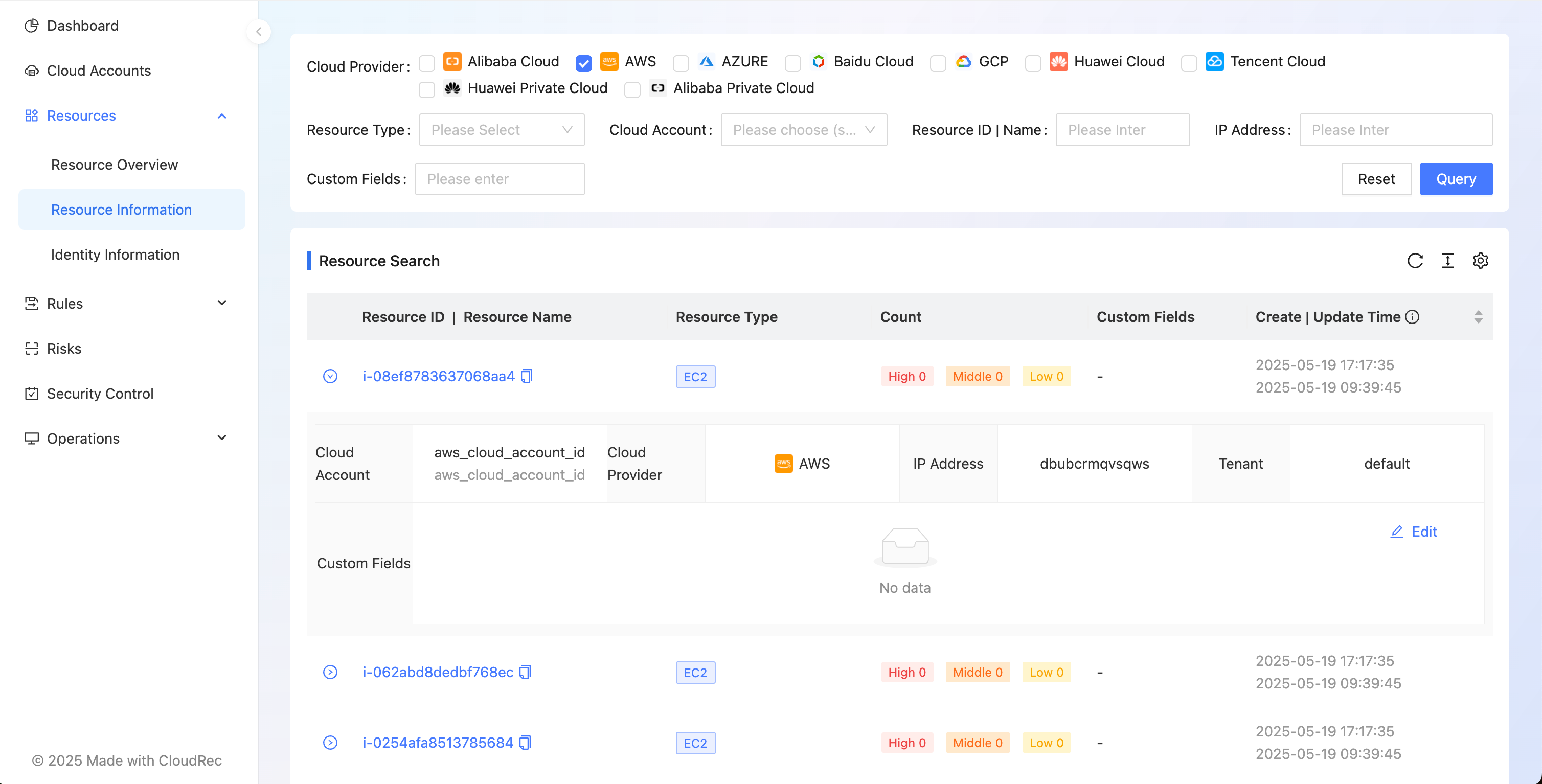

Click on the left side of the resource record triangle symbol button, additional fields of the resource record, such as cloud account number, cloud platform, IP address, tenant name, and custom fields, are displayed. Among them IP address the settings can be read set the IP address field of the resource , custom Fields the settings can be read set custom fields for an resource .

Set the IP address field of the resource

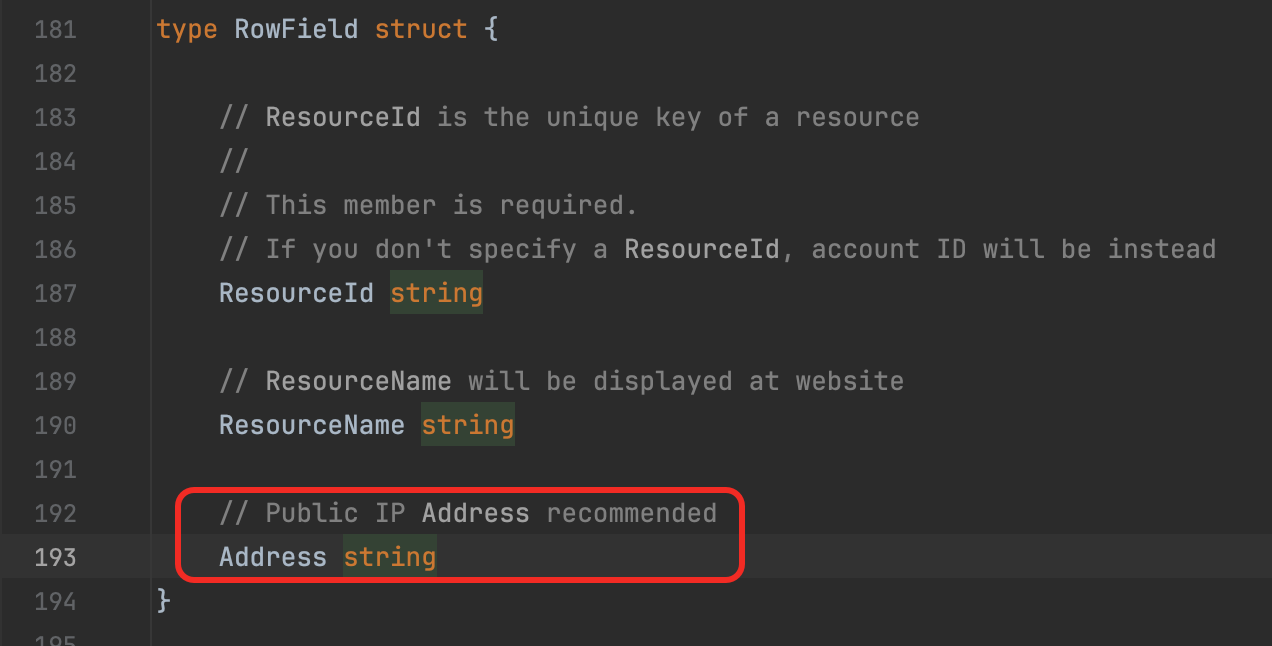

of resources IP address the value of the field comes from the core-sdk/schema/resource.go:181 in the collector. RowField the structure Address the setting of the field. Currently, only the string type is supported.

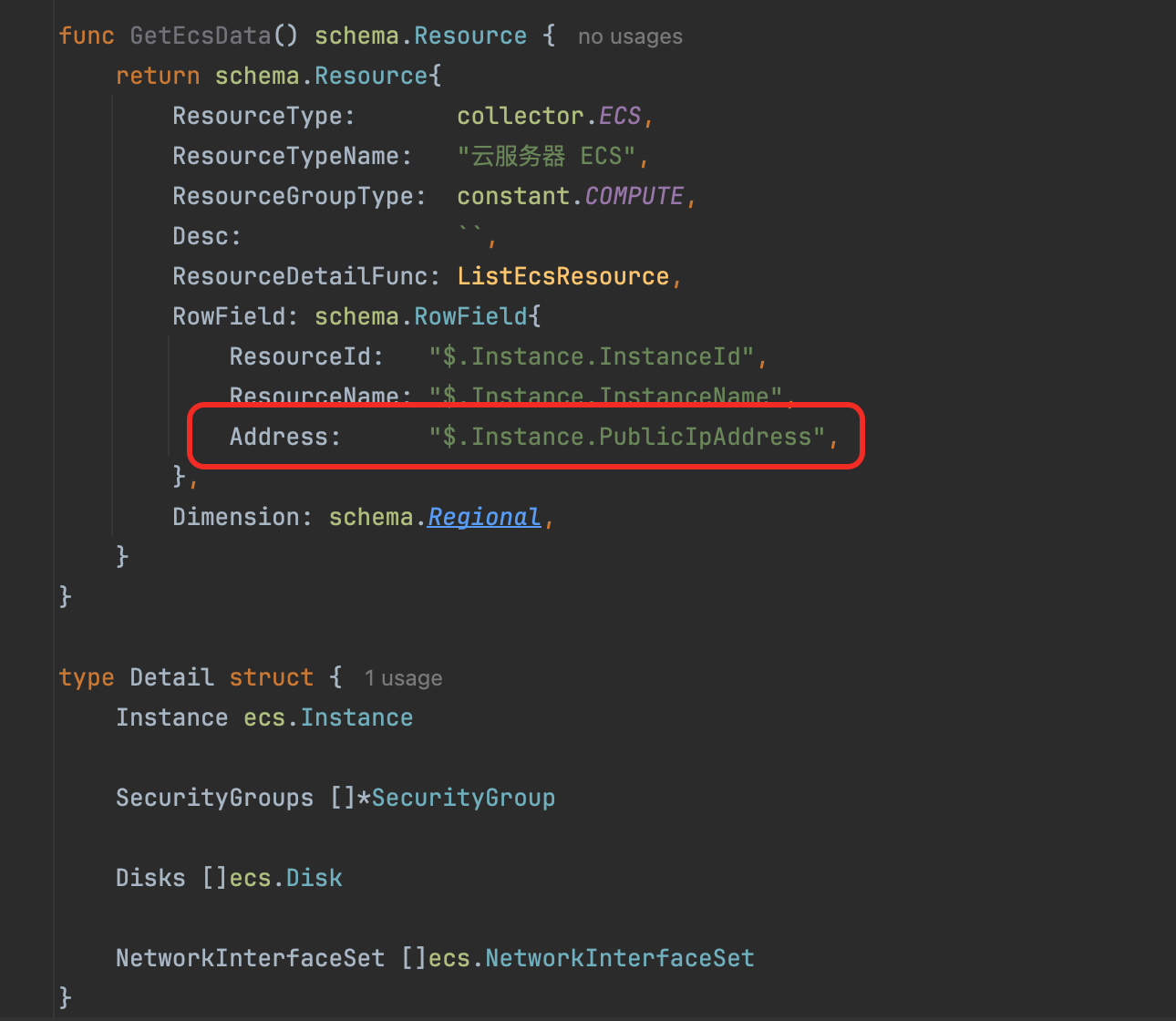

The following figure shows how to set the Address field for an Alibaba Cloud ECS instance

Set custom fields for an resource

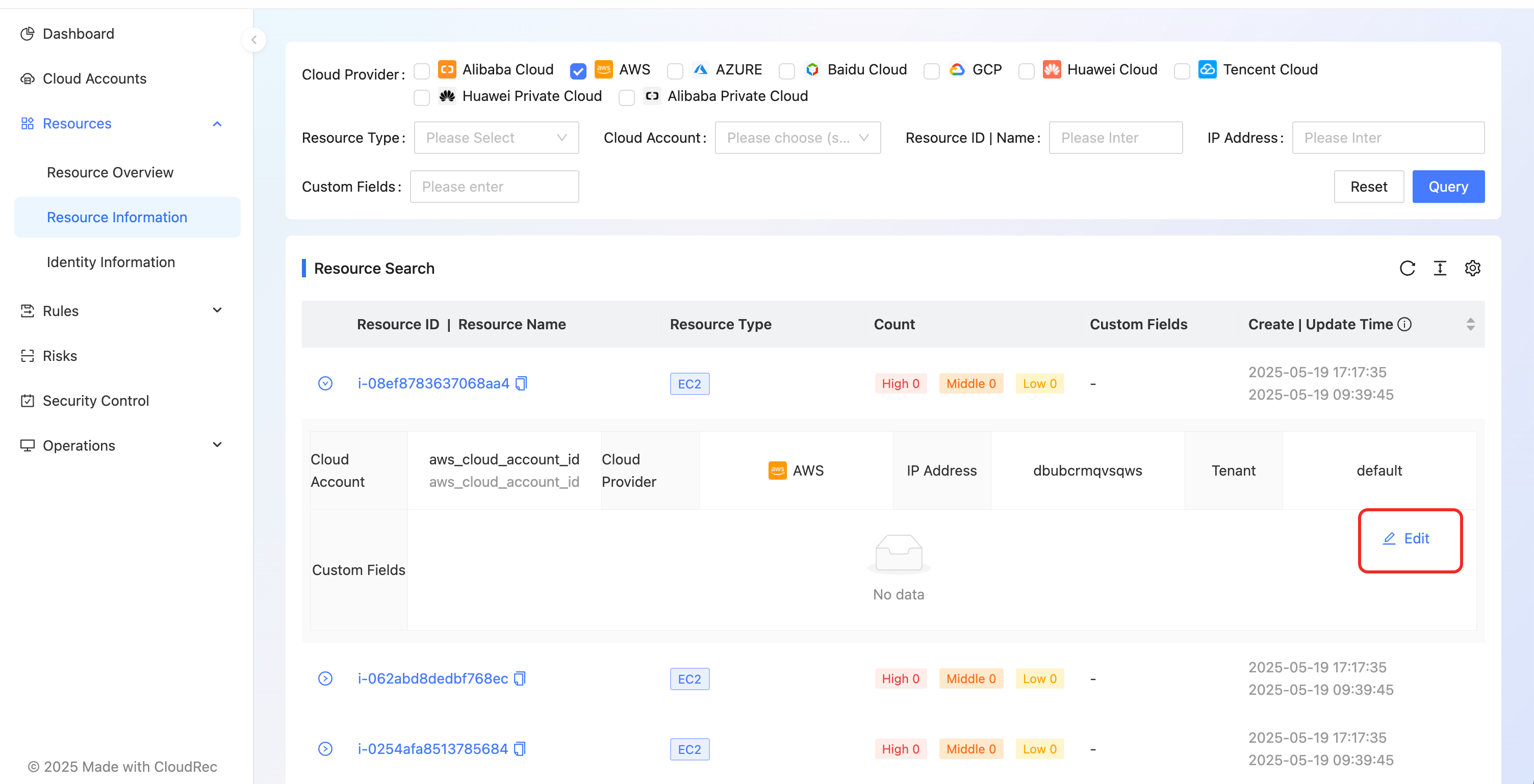

after clicking on the resource record to expand, the right edit button to jump to the custom field configuration page

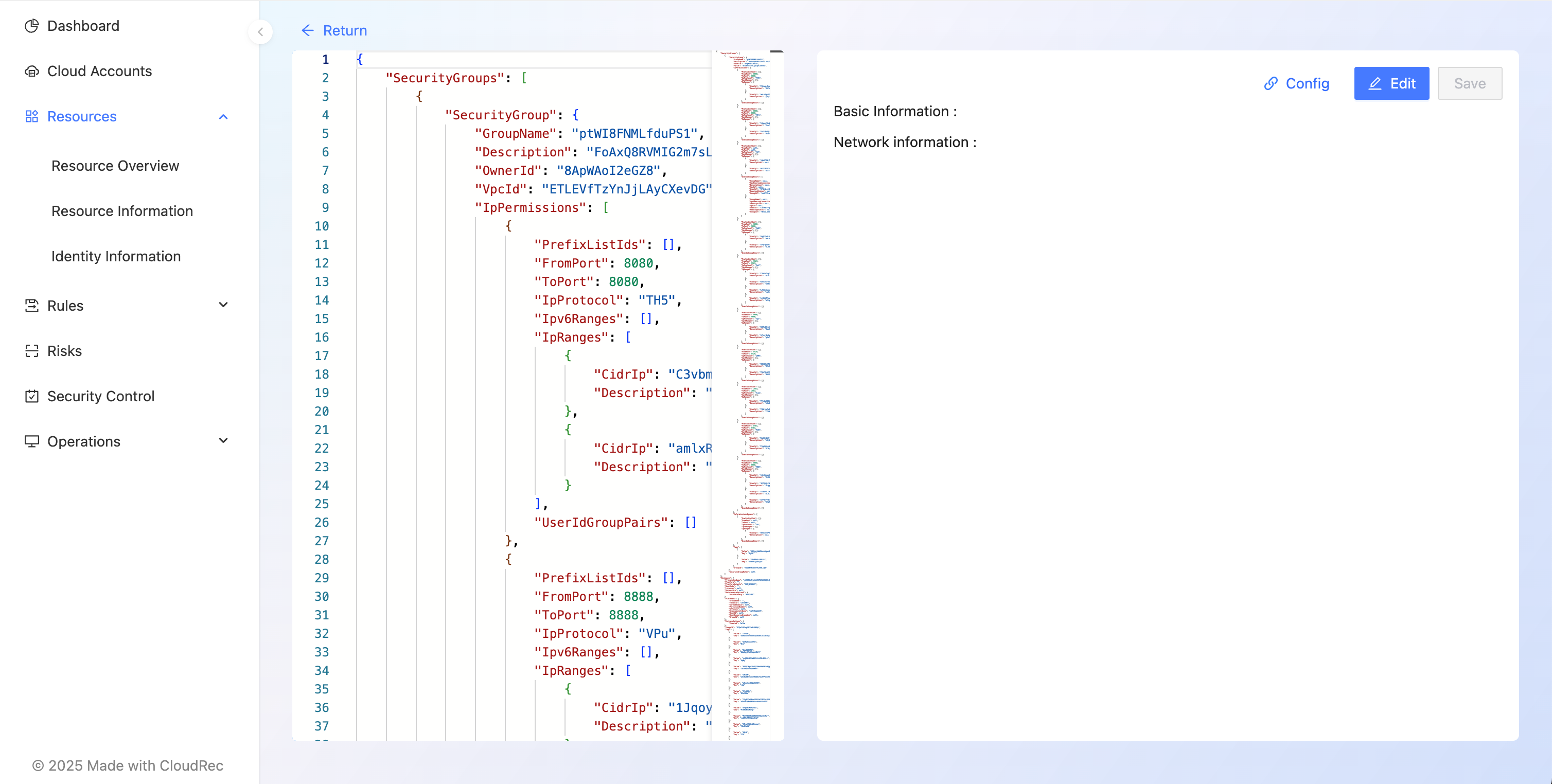

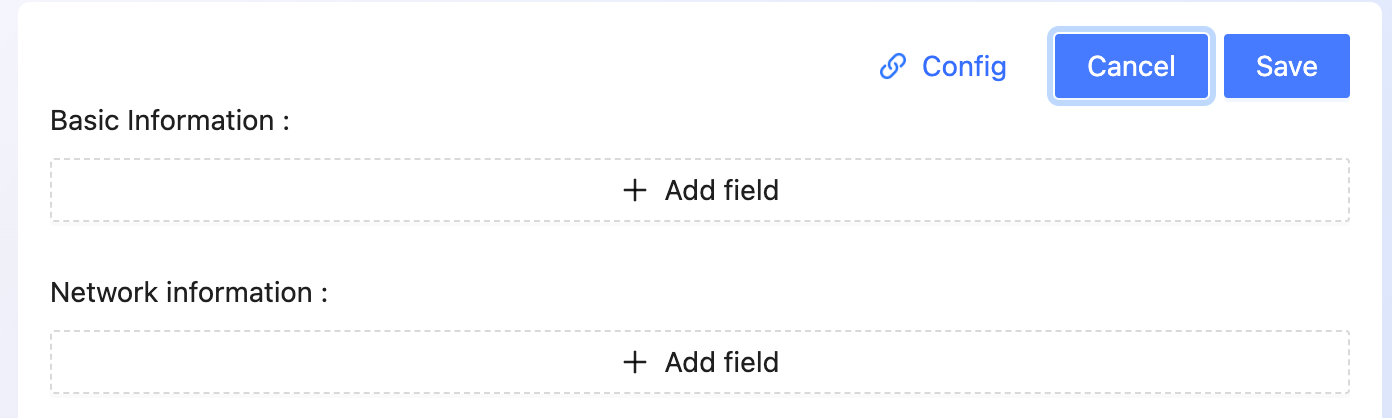

click on the right edit button to edit custom fields, click Add field add a custom field

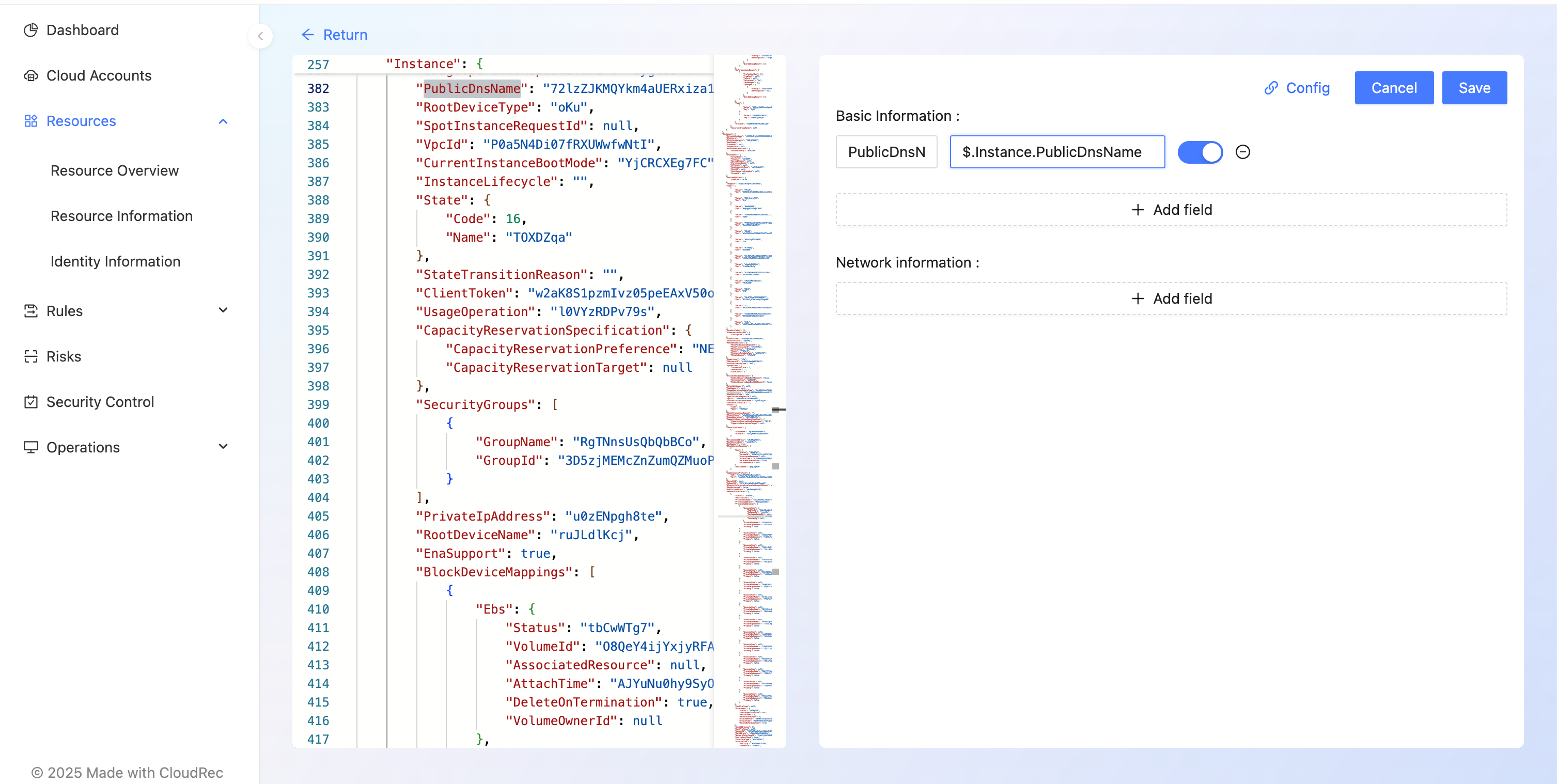

use jsonPath to get the value of the field, jsonPath syntax description below this section. Click the right Save button to complete the configuration

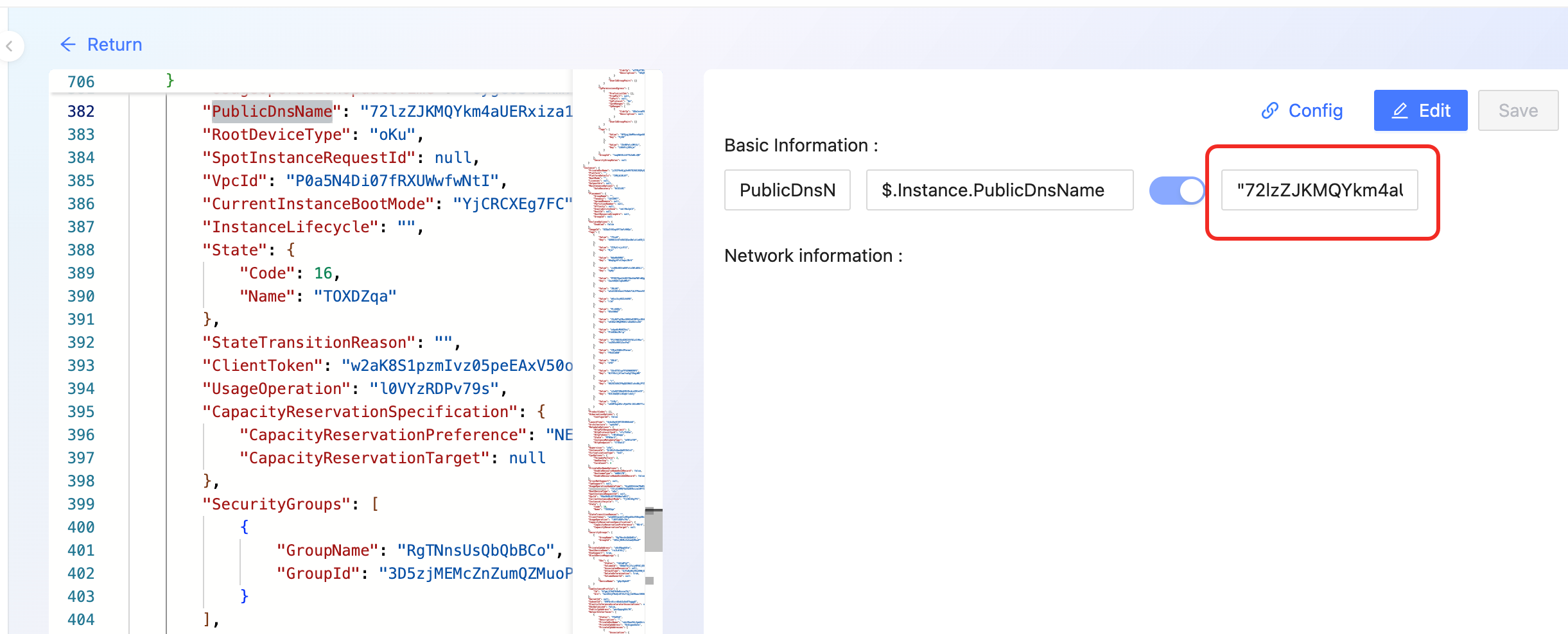

at the top of the page, you are prompted that the save is successful and you can preview the value obtained by jsonPath. Click on the upper left corner return arrow returns to the resource information interface.

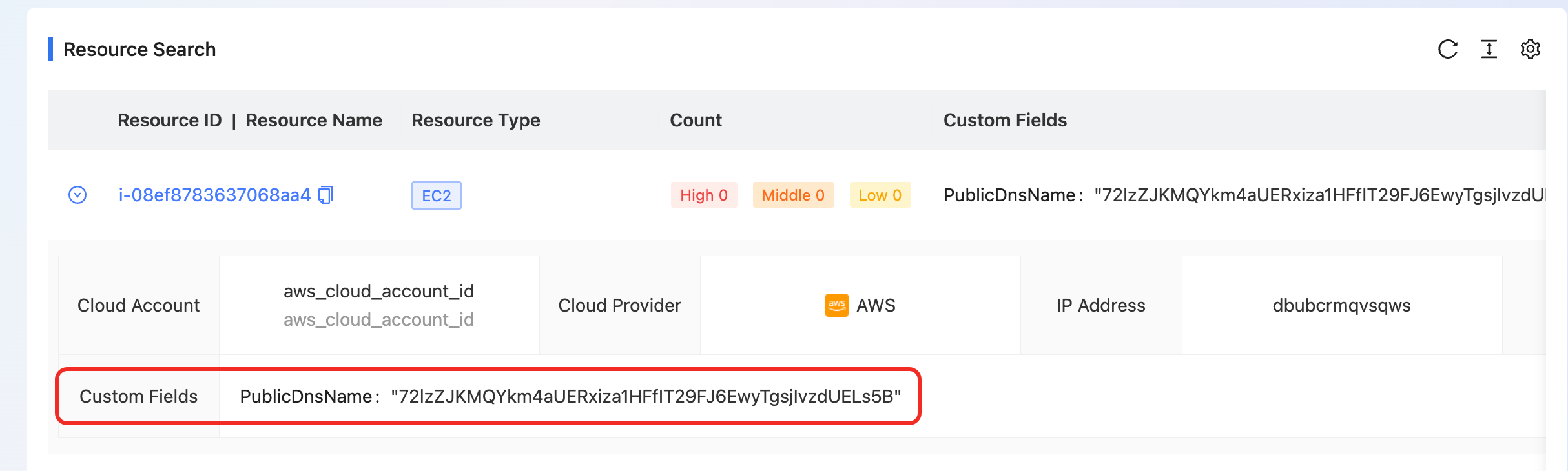

You can see the custom fields configured using jsonPath in the resource details. The configuration of the custom field takes effect for all records of the same resource type.

jsonPath Syntax simple description

{
    "store": {
        "book": [
            {
                "category": "reference",
                "author": "Nigel Rees",
                "title": "Sayings of the Century",
                "price": 8.95
            },
            {
                "category": "fiction",
                "author": "Evelyn Waugh",
                "title": "Sword of Honour",
                "price": 12.99
            },
            {
                "category": "fiction",
                "author": "Herman Melville",
                "title": "Moby Dick",
                "isbn": "0-553-21311-3",
                "price": 8.99
            },
            {
                "category": "fiction",
                "author": "J. R. R. Tolkien",
                "title": "The Lord of the Rings",
                "isbn": "0-395-19395-8",
                "price": 22.99
            }
        ],
        "bicycle": {
            "color": "red",
            "price": 19.95
        }
    },
    "expensive": 10
}

JsonPath	Result	Value
$.store.bicycle.color	The bicycle color	red
$.store.book[*].author	The authors of all books	["Nigel Rees","Evelyn Waugh","Herman Melville","J. R. R. Tolkien"]
$..author	All authors	["Nigel Rees","Evelyn Waugh","Herman Melville","J. R. R. Tolkien"]
$.store..price	The price of everything	[8.95,12.99,8.99,22.99,19.95]
$..book.length()	The number of books	4

Reference documentation: JsonPath GitHub
