Rules
Purpose
Since CloudRec rules are developed using the rego language of OPA, this article aims to help users quickly become familiar with rego syntax and cloudrec-specific rego constraints, and then develop rules to detect risks on the cloud.
Basic Rego syntax
Everything you need：Official documents of OPA
CloudRec requirements for Rego rules
CloudRec requires a boolean rule named risk, which is used to determine whether a risk exists. Therefore, the recommended template is as follows:
plain
package {any_package_name}
import rego.v1
default risk := false
risk if {
[any condition to tell a risk here]
}examples
example 1
rule name: Open access to the public network for a Kafka instance
rule description: Kafka deployment type is public network/VPC instance, and public IP whitelist is 0.0.0.0/0
plain
package kafka_open_to_all_public
import rego.v1
default risk := false
risk if {
is_internet_instance
is_acl_misconfiguraion
}
is_internet_instance if {
input.InstanceVO.DeployType == 4
}
internet_allowe_ip_list := input.AllowedList.InternetList[_].AllowedIpList
is_acl_misconfiguraion if {
some acl in internet_allowe_ip_list
acl == "0.0.0.0/0"
}json
{
"AllowedList": {
"DeployType": 4,
"InternetList": [
{
"AllowedIpList": [
"0.0.0.0/0"
],
"PortRange": "9093/9093",
"AllowedIpGroup": {
"sasl-port": [
"ip.ip.ip.ip",
"0.0.0.0/0"
]
}
}
],
"VpcList": [
{
"AllowedIpList": [
"10.11.12.0/22"
],
"PortRange": "9092/9092",
"AllowedIpGroup": {
"alikafka_post-cn-kve3wexfg005": [
"10.11.12.0/22"
]
}
}
]
},
"InstanceVO": {
"DeployType": 4,
"ReservedPublishCapacity": 0,
"ResourceGroupId": "rg-aekxxxxxxxx6i",
"SpecType": "normal",
"IoMax": 20,
"AllConfig": "{\"enable.vpc_sasl_ssl\":\"false\",\"kafka.log.retention.hours\":\"168\",\"kafka.offsets.retention.minutes\":\"20164\",\"enable.acl\":\"false\",\"kafka.ssl.bit\":\"4096\",\"enable.compact\":\"true\",\"kafka.message.max.bytes\":\"1048576\"}",
"EndPoint": "10.11.12.13:9092,10.11.12.13:9092,10.11.12.14:9092",
"UpgradeServiceDetailInfo": {
"Current2OpenSourceVersion": "2.6.2"
},
"SaslDomainEndpoint": "",
"Name": "alikafka_post-cn-name",
"ViewInstanceStatusCode": 2,
"ConfluentConfig": {
"KsqlStorage": 0,
"KafkaRestProxyCU": 0,
"ZooKeeperReplica": 0,
"KafkaReplica": 0,
"ConnectReplica": 0,
"ControlCenterStorage": 0,
"SchemaRegistryCU": 0,
"ConnectCU": 0,
"KafkaCU": 0,
"KsqlCU": 0,
"ControlCenterReplica": 0,
"KsqlReplica": 0,
"SchemaRegistryReplica": 0,
"KafkaRestProxyReplica": 0,
"ZooKeeperCU": 0,
"ZooKeeperStorage": 0,
"ControlCenterCU": 0,
"KafkaStorage": 0
},
"DiskType": 0,
"SslDomainEndpoint": "alikafka-post-cn-name-1.alikafka.aliyuncs.com:9093,alikafka-post-cn-name-2.alikafka.aliyuncs.com:9093,alikafka-post-cn-name-3.alikafka.aliyuncs.com:9093",
"ReservedSubscribeCapacity": 0,
"ServiceStatus": 5,
"ExpiredTime": 2040882749000,
"MsgRetain": 168,
"DiskSize": 600,
"TopicNumLimit": 1002,
"Tags": {
"TagVO": [
{
"Value": "axxxxxbs",
"Key": "app"
},
{
"Value": "",
"Key": "ekyt"
},
{
"Value": "EKYT",
"Key": "build_rego"
}
]
}
}
}example 2
rule NAME: Port 22 of the ECS Security group is open to the entire network
rule description: Port 22 of the ECS Security group is open to the entire network
plain
package ecs_public_open_rule
import rego.v1
default risk := false
risk if {
count(sg_with_22) > 0
count(min_priority_with_drop) = 0
has_public_address
}
instance_id := input.InstanceId
instance_name := input.InstanceName
public_ip_address := input.Instance.PublicIpAddress.IpAddress
## Rules
has_public_address if {
count(public_ip_address) > 0
}
sg_with_22 contains p if {
some p in input.SecurityGroups[_].Permissions
parts := split(p.PortRange, "/")
22 in numbers.range(to_number(parts[0]),to_number(parts[1]))
p.SourceCidrIp == "0.0.0.0/0"
p.Direction == "ingress"
}
extract_key_values(input_array, key) = values if {
values := [v | i := input_array[_]; v := to_number(i[key])]
}
min_priority_with_drop contains p if {
some p in sg_with_22
to_number(p.Priority) == min(extract_key_values(sg_with_22,"Priority"))
p.Policy == "Drop"
}json
{
"NetworkInterfaceSet": [
{
"Description": "",
"PrivateIpAddress": "172.16.226.33",
"DeleteOnRelease": true,
"ResourceGroupId": "",
"ServiceManaged": false,
"Attachment": {
"AttachedTime": "",
"Identifier": "",
"InstanceId": "",
"NsId": 0,
"AccessToken": "",
"Device": "",
"DeviceIndex": 0,
"MemberNetworkInterfaceIds": {
"MemberNetworkInterfaceId": null
},
"NetworkCardIndex": 0,
"Nguid": "",
"TrunkNetworkInterfaceId": "",
"TargetDevice": ""
},
"NetworkInterfaceId": "eni-bp157ghnfufb9gxrskvu",
"Ipv6Sets": {
"Ipv6Set": []
},
"OwnerId": "1984445718834649",
"AssociatedPublicIp": {
"PublicIpAddress": "",
"AllocationId": ""
},
"Tags": {
"Tag": null
},
"Status": "InUse",
"NetworkInterfaceTrafficMode": "Standard",
"ZoneId": "cn-hangzhou-g",
"InstanceId": "i-bp1g1k8avl28o0ywgmer",
"VSwitchId": "vsw-bp1olewabvs4ha9q9rrn4",
"NetworkInterfaceName": "",
"MacAddress": "00:16:3e:09:6b:f6",
"SecurityGroupIds": {
"SecurityGroupId": [
"sg-bp1c9njzlg43gr63ousv"
]
},
"ServiceID": 0,
"SourceDestCheck": false,
"Type": "Primary",
"QueueNumber": 2,
"QueuePairNumber": 0,
"VpcId": "vpc-bp1r0492ng4r7btsoz8x4",
"Ipv6PrefixSets": {
"Ipv6PrefixSet": []
},
"CreationTime": "2019-04-15T09:43:45Z",
"Ipv4PrefixSets": {
"Ipv4PrefixSet": []
},
"PrivateIpSets": {
"PrivateIpSet": [
{
"PrivateDnsName": "",
"PrivateIpAddress": "172.16.226.33",
"AssociatedPublicIp": {
"PublicIpAddress": "",
"AllocationId": ""
},
"Primary": true
}
]
}
}
],
"SecurityGroups": [
{
"Permissions": [
{
"Policy": "Accept",
"SourceGroupId": "",
"Description": "",
"SourcePortRange": "",
"Priority": "1",
"CreateTime": "2019-05-23T06:12:06Z",
"DestPrefixListName": "",
"Ipv6SourceCidrIp": "",
"NicType": "intranet",
"DestGroupId": "",
"Direction": "ingress",
"SourceGroupName": "",
"DestGroupOwnerAccount": "",
"PortRange": "22/22",
"DestPrefixListId": "",
"SourceCidrIp": "119.110.100.86",
"SourcePrefixListName": "",
"IpProtocol": "TCP",
"DestCidrIp": "",
"DestGroupName": "",
"SecurityGroupRuleId": "sgr-somesecuritygroupruleid",
"Ipv6DestCidrIp": "",
"SourceGroupOwnerAccount": "",
"SourcePrefixListId": ""
},
{
"Policy": "Accept",
"SourceGroupId": "sg-somesecuritygroupid",
"Description": "云盾堡垒机自动添加规则",
"SourcePortRange": "-1/-1",
"Priority": "1",
"CreateTime": "2019-05-22T08:33:52Z",
"DestPrefixListName": "",
"Ipv6SourceCidrIp": "",
"NicType": "intranet",
"DestGroupId": "",
"Direction": "ingress",
"SourceGroupName": "",
"DestGroupOwnerAccount": "",
"PortRange": "-1/-1",
"DestPrefixListId": "",
"SourceCidrIp": "",
"SourcePrefixListName": "",
"IpProtocol": "ALL",
"DestCidrIp": "",
"DestGroupName": "",
"SecurityGroupRuleId": "sgr-somesecuritygroupruleid",
"Ipv6DestCidrIp": "",
"SourceGroupOwnerAccount": "1649796836582446",
"SourcePrefixListId": ""
}
],
"SecurityGroup": {
"RuleCount": 66,
"EcsCount": 0,
"Description": "System created security group.",
"ResourceGroupId": "",
"SecurityGroupName": "sg-somesecuritygroupid",
"ServiceManaged": false,
"SecurityGroupId": "sg-somesecuritygroupid",
"SecurityGroupType": "normal",
"AvailableInstanceAmount": 0,
"ServiceID": 0,
"VpcId": "vpc-somevpcid",
"GroupToGroupRuleCount": 1,
"CreationTime": "2019-04-15T09:43:53Z",
"Tags": {
"Tag": []
}
}
}
],
"Instance": {
"ResourceGroupId": "",
"AgentVersion": "",
"Connected": false,
"InstanceChargeType": "PrePaid",
"Memory": 8192,
"CPU": 0,
"Cpu": 2,
"OSName": "CentOS 7.6 64位",
"IntranetIp": "",
"InstanceNetworkType": "vpc",
"InnerIpAddress": {
"IpAddress": []
},
"InternetIp": "",
"OsType": "",
"ExpiredTime": "2025-04-24T16:00Z",
"EipAddress": {
"AllocationId": "",
"Bandwidth": 0,
"IpAddress": "",
"IsSupportUnassociate": false,
"InternetChargeType": ""
},
"ImageId": "centos_7.vhd",
"ImageOptions": {
"CurrentOSNVMeSupported": false,
"LoginAsNonRoot": false
},
"HostName": "somehostname",
"Tags": {
"Tag": null
},
"VlanId": "",
"Status": "Running",
"HibernationOptions": {
"Configured": false
},
"MetadataOptions": {
"HttpPutResponseHopLimit": 0,
"HttpTokens": "",
"HttpEndpoint": ""
},
"InstanceId": "i-someinstanceid",
"StoppedMode": "Not-applicable",
"CpuOptions": {
"TopologyType": "",
"SupportedTopologyTypes": {
"SupportedTopologyType": null
},
"ThreadsPerCore": 2,
"Numa": "",
"CoreCount": 1
},
"ActivationId": "",
"Hostname": "",
"StartTime": "2022-04-06T07:07Z",
"PrivateDnsNameOptions": {
"EnableInstanceIdDnsARecord": false,
"HostnameType": "",
"EnableIpDnsPtrRecord": false,
"EnableIpDnsARecord": false,
"EnableInstanceIdDnsAAAARecord": false
},
"DeletionProtection": false,
"PrivatePoolOptionsMatchCriteria": "",
"RegistrationTime": "",
"SecurityGroupIds": {
"SecurityGroupId": [
"sg-somesecuritygroupid"
]
},
"VpcAttributes": {
"PrivateIpAddress": {
"IpAddress": [
"172.30.03.33"
]
},
"VpcId": "vpc-somevpcid",
"VSwitchId": "vsw-somevswid",
"NatIpAddress": ""
},
"InstanceOwnerId": 0,
"InternetChargeType": "PayByTraffic",
"PrivatePoolOptionsId": "",
"DeploymentSetId": "",
"InstanceName": "foundation1",
"SpotInterruptionBehavior": "",
"InternetMaxBandwidthOut": 20,
"SerialNumber": "e499xxxx-xxxx-xxxx-xxxx-e499e499",
"OSType": "linux",
"CreationTime": "2019-04-15T09:43Z",
"AutoReleaseTime": "",
"MachineId": "",
"Description": "",
"LocalStorageCapacity": 0,
"InstanceTypeFamily": "ecs.g5",
"DedicatedInstanceAttribute": {
"Tenancy": "",
"Affinity": ""
},
"OsVersion": "",
"SpotDuration": 0,
"LocalStorageAmount": 0,
"PublicIpAddress": {
"IpAddress": [
"119.110.100.86"
]
},
"GPUSpec": "",
"NetworkType": "",
"SocketId": "",
"NetworkInterfaces": {
"NetworkInterface": [
{
"NetworkInterfaceTrafficMode": "",
"Description": "",
"SecurityGroupId": "",
"VSwitchId": "",
"NetworkInterfaceName": "",
"PrimaryIpAddress": "172.30.03.33",
"MacAddress": "00:16:3e:09:6b:f6",
"NetworkInterfaceId": "eni-someeniinstanceid",
"SecurityGroupIds": {
"SecurityGroupId": null
},
"Type": "Primary",
"Ipv6Sets": {
"Ipv6Set": null
},
"Ipv6PrefixSets": {
"Ipv6PrefixSet": null
},
"InstanceType": "",
"Ipv4PrefixSets": {
"Ipv4PrefixSet": null
},
"PrivateIpSets": {
"PrivateIpSet": [
{
"PrivateDnsName": "",
"PrivateIpAddress": "172.30.03.33",
"AssociatedPublicIp": {
"PublicIpAddress": "",
"AllocationId": ""
},
"Primary": true
}
]
}
}
]
},
"SpotPriceLimit": 0,
"DeviceAvailable": true,
"SaleCycle": "",
"InstanceType": "ecs.g5.large",
"OSNameEn": "CentOS 7.6 64 bit",
"SpotStrategy": "NoSpot",
"IsSpot": false,
"KeyPairName": "",
"IoOptimized": true,
"ZoneId": "cn-hangzhou-g",
"ClusterId": "",
"HpcClusterId": "",
"InvocationCount": 0,
"ISP": "",
"DeploymentSetGroupNo": 0,
"EcsCapacityReservationAttr": {
"CapacityReservationPreference": "",
"CapacityReservationId": ""
},
"DedicatedHostAttribute": {
"DedicatedHostId": "",
"DedicatedHostName": "",
"DedicatedHostClusterId": ""
},
"GPUAmount": 0,
"OperationLocks": {
"LockReason": []
},
"RdmaIpAddress": {
"IpAddress": null
},
"InternetMaxBandwidthIn": 1000,
"Recyclable": false,
"LastInvokedTime": "",
"RegionId": "cn-hangzhou",
"CreditSpecification": ""
},
"Disks": [
{
"KMSKeyId": "",
"ResourceGroupId": "",
"Encrypted": false,
"Size": 40,
"DeleteAutoSnapshot": false,
"IOPS": 3000,
"MultiAttach": "Disabled",
"Placement": {
"ZoneIds": ""
},
"ExpiredTime": "2025-04-24T16:00Z",
"ImageId": "centos_7.vhd",
"StorageSetId": "",
"Tags": {
"Tag": []
},
"Status": "In_use",
"AttachedTime": "2019-04-15T09:44:21Z",
"IOPSRead": 0,
"IOPSWrite": 0,
"InstanceId": "i-someinstanceid",
"ProductCode": "",
"Device": "/dev/xvda",
"DeleteWithInstance": true,
"ProvisionedIops": 0,
"BdfId": "",
"ThroughputWrite": 0,
"Portable": true,
"MountInstanceNum": 0,
"SerialNumber": "",
"CreationTime": "2019-04-15T09:43:45Z",
"DiskId": "d-somediskid",
"DetachedTime": "",
"Category": "cloud_ssd",
"Description": "",
"ThroughputRead": 0,
"DiskChargeType": "PrePaid",
"Throughput": 140,
"StorageSetPartitionNumber": 0,
"Attachments": {
"Attachment": [
{
"AttachedTime": "2019-04-15T09:44:21Z",
"Identifier": "",
"InstanceId": "i-someinstanceid",
"NsId": 0,
"AccessToken": "",
"Device": "/dev/xvda",
"DeviceIndex": 0,
"MemberNetworkInterfaceIds": {
"MemberNetworkInterfaceId": null
},
"NetworkCardIndex": 0,
"Nguid": "",
"TrunkNetworkInterfaceId": "",
"TargetDevice": ""
}
]
},
"BurstingEnabled": false,
"StorageClusterId": "",
"ZoneId": "cn-hangzhou-g",
"SourceSnapshotId": "",
"PerformanceLevel": "",
"EnableAutomatedSnapshotPolicy": false,
"EnableAutoSnapshot": true,
"AutoSnapshotPolicyId": "",
"DiskName": "",
"OperationLocks": {
"OperationLock": []
},
"Type": "system",
"MountInstances": {
"MountInstance": null
},
"RegionId": "cn-hangzhou"
}
],
"PublicAddress": "119.110.100.86"
}Common functions
time function
Full documentation is here https://www.openpolicyagent.org/docs/latest/policy-reference/#time
json

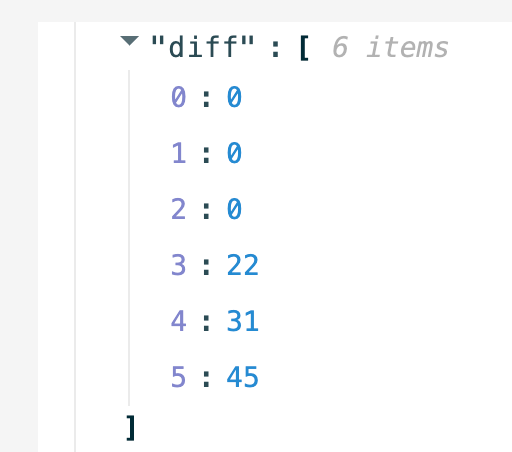

diff := time.diff(ns1,ns2)
top to bottom are year, month, day, hour, minute and second respectively
translate the time in the RFC 3339 format to nanoseconds. The RFC 3339 format is 2024-10-17T08:15:23Z.
json
time.parse_rfc3339_ns(date)layout Reference golang https://pkg.go.dev/time#Parse
- there is a layout:time.parse_ns("2006-01-02", "2024-10-17"), which must be 2006-01-02
json
time.parse_ns(layout, date)json
time.add_date(ns, years, months, days)util
extract the value of the specified key
if the input is an array, each element object is a json, and the value of the specified key in the json is extracted.
go
extract_key_values(input_array, key) = values if {
values := [v | i := input_array[_]; v := i[key]]
}Returns the maximum value in a collection
note whether the element type is num or str, max(["100","2"]) and max([100,2]) will get the opposite result
can be used to_number(str) make the conversion
plain
n := max(collection)References
Official documents of OPA
https://www.openpolicyagent.org/docs/latest/policy-language/
