Server && Collector

🛠️ Server

Requirements

Pre-dependency

Deploy OPA (open agent policy) service

shell

curl -L -o opa https://cloud-rec.oss-cn-hangzhou.aliyuncs.com/opa_darwin_arm64_static

opa run --server --log-level debug

Create the Server database

The database file for the server is located in the project Root Directory:/doc/tables.sql

Modify the server config file

properties

# server
spring.application.name=cloudrec
server.port=8080
server.url=http://localhost:8080
# mybatis config
mybatis.mapper-locations=classpath:/mapper/*Mapper.xml
mybatis.configuration.log-impl=org.apache.ibatis.logging.stdout.StdOutImpl
spring.datasource.url=jdbc:mysql://localhost:3306/cloudrec_db?useSSL=false&serverTimezone=Asia/Shanghai&allowPublicKeyRetrieval=true
spring.datasource.username=root
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.password=root

opa.url=http://localhost:8181/

job.scheduler.type=local

cloudrec.rule.path=/tmp/

🛠️ Collector

Requirements

Go 1.23 +

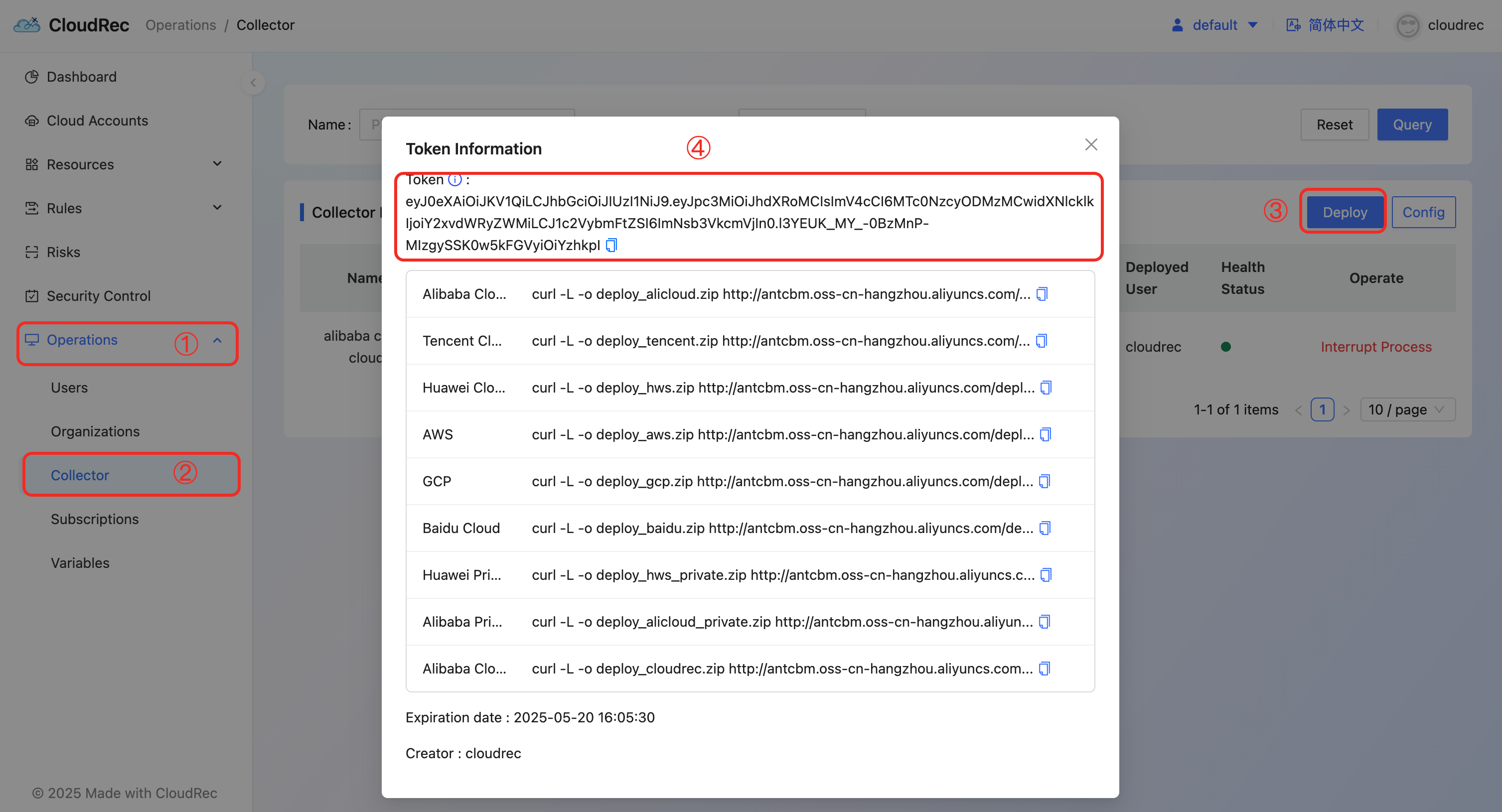

Get AccessToken

follow steps below and get the accessToken

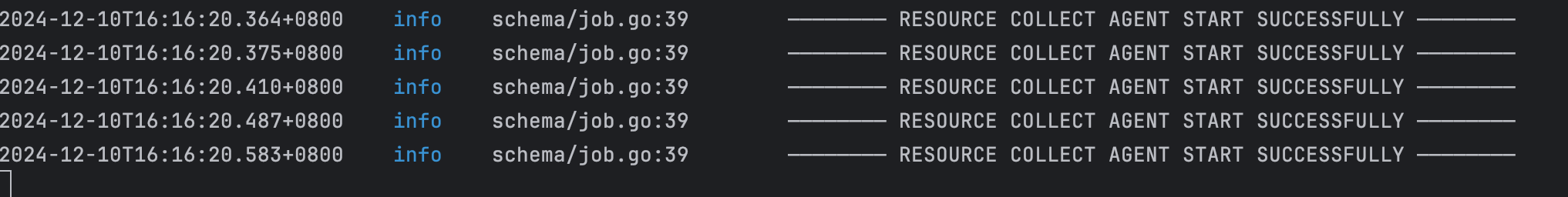

Configure the access token obtained to config.yaml in the root directory of the project. Start the project

Developing

Currently Supported Cloud Platforms

Alibaba Cloud
AWS
HUAWEI CLOUD
Tencent Cloud
Baidu Cloud
GCP

If you want to add a new cloud platform, please communicate in advance.

Add a new cloud service for data collection

please refer to the cloud services corresponding to the currently supported cloud platforms: list of currently supported asset collections

or view it under/collector/constant.go on the tail cloud platform, for example: tail alicloud/collector/constant.go

Create a package with a cloud service name

if the cloud product already exists and only associates more related data, omit this step.

Defining a Resource

Manage the ResourceType of the cloud service in constant.go, and ensure that the ResourceType does not contain Chinese characters and spaces. Once the ResourceType is created, it can only be deleted from the server database.
Use the json path to obtain a value from the detail. Only ResourceId is required.

func GetResource() schema.Resource {
	return schema.Resource{
		ResourceType:       provider.EC2,
		ResourceTypeName:   "EC2",
		ResourceGroupType:  constant.COMPUTE,
		Desc:               `https://next.api.aliyun.com/api/Ecs/2014-05-26/DescribeSecurityGroupAttribute?RegionId=cn-hangzhou`,

		ResourceDetailFunc: GetSecurityGroupDetail,

        // ResourceId is required
		RowField: schema.RowField{
			ResourceId:   "$.Instance.InstanceId",
			ResourceName: "$.Instance.InstanceName",
		},

		Dimension: schema.Regional,
	}
}

Create a Detail structure

Detail can be considered as an instance of a cloud product. Manage your asset json in Detail.


type Detail struct {
    Instance types.Instance

    // Others
    // ...
}

Create a client of the corresponding cloud product

if the cloud product already exists and only associates more related data, omit this step.

You need to initialize the corresponding client in collector/services.go and use switch caseto select, for example:


type Services struct {
	CloudAccountId  string
	Config          *openapi.Config
	ECS             *ecs.Client
	VPC             *vpc.Client
    // ... other client
}

func (s *Services) InitServices(param schema.CloudAccountParam) (err error) {
	s.CloudAccountId = param.CloudAccountId
	s.Config = openapiConfig(param.Region, param.AK, param.SK)

	switch param.ResourceType {

	case ECS, SecurityGroup:
		s.ECS, err = ecs.NewClientWithAccessKey(param.Region, param.AK, param.SK)
		if err != nil {
			log.GetWLogger().Error(fmt.Sprintf("failed to initialize ECS client in region:%s, err:%s", param.Region, err.Error()))
		}
	case VPC:
		s.VPC, err = vpc.NewClientWithAccessKey(param.Region, param.AK, param.SK)
    }
    // ... other client

	return nil
}

Create a callback function for ResourceDetailFunc

you can implement the ResourceDetailFunc callback function, use the cloud product client you just created, obtain the instance data, store the instance data in the Detail structure created in the 2.3, and finally submit the data to the res pipeline in the loop (don't wait until the loop is over before submitting it in a unified way). Since the cloud platform api limits the number of rows per request, you need to page through the information of the cloud product.


func DescribeInstance(ctx context.Context, service schema.ServiceInterface, res chan<- any) (err error) {
    client := service.(*provider.Services).EC2

    input := &ec2.DescribeInstancesInput{
        NextToken: nil,
    }
    output, err := client.DescribeInstances(ctx, input)
    if err != nil {
        return err
    }
    instances := output.Reservations[0].Instances
    for output.NextToken != nil {
        input = &ec2.DescribeInstancesInput{
            NextToken: output.NextToken,
        }
        output, err = client.DescribeInstances(ctx, input)
        instances = append(instances, output.Reservations[0].Instances...)
    }

    for _, instance := range instances {
        res <- DescribeInstanceOutput{
            Instance: instance,
        }
    }

    return nil
}

If cloud products are divided into regions, you do not need to traverse regions, and the platform will use _schema.Platform_the global DefaultRegions defined in is used as the default region to be traversed. If you are sure that your cloud products only exist in certain regions, you can define specify schema.Resource to avoid invalid requests., if the cloud product does not need to traverse the region, it only needs _Dimension_change to Global. For example:

func GetWAFResource() schema.Resource {
	return schema.Resource{
		ResourceType:       collector.WAF,
		ResourceTypeName:   collector.WAF,
		ResourceGroupType:  constant.SECURITY,
		Desc:               `https://api.aliyun.com/api/waf-openapi/2021-10-01/DescribeInstance?sdkStyle=old&tab=DOC&params={%22RegionId%22:%22cn-hangzhou%22}`,
		ResourceDetailFunc: GetInstanceDetail,
		RowField: schema.RowField{
			ResourceId: "$.Instance.InstanceId",
		},
		Dimension: schema.Global,
		Regions:   []string{"cn-hangzhou", "ap-southeast-1"},
	}
}

Call GetResource()

finally call the one you just created. schema.Resource

func GetPlatformConfig() *schema.Platform {
	alicloudRegions := []string{
		"cn-beijing", "cn-beijing-finance-1", "cn-chengdu", "cn-guangzhou", "cn-hangzhou", "cn-heyuan", "cn-hongkong", "cn-huhehaote", "cn-qingdao", "cn-shanghai", "cn-shanghai-finance-1", "cn-shenzhen", "cn-shenzhen-finance-1", "cn-wulanchabu", "cn-zhangjiakou", "ap-northeast-1", "ap-south-1", "ap-southeast-2", "ap-southeast-3", "ap-southeast-5", "eu-central-1", "eu-west-1", "me-east-1", "us-east-1", "us-west-1"}

	return schema.GetInstance(schema.PlatformConfig{
		Name: string(constant.AlibabaCloud),
		Resources: []schema.Resource{
			cloudfw.GetCloudFWResource(),
            // ... other resource
		},

		Service:        &collector.Services{},
		DefaultRegions: alicloudRegions,
	})
}

Complete example

package cloudfw

import (
	"github.com/core-sdk/constant"
	"github.com/core-sdk/log"
	"github.com/core-sdk/schema"
	"context"
	"github.com/cloudrec/alicloud/collector"
	cloudfw20171207 "github.com/alibabacloud-go/cloudfw-20171207/v5/client"
	"github.com/alibabacloud-go/tea/tea"
	"strconv"
	"time"
)

func GetCloudFWResource() schema.Resource {
	return schema.Resource{
		ResourceType:                 collector.Cloudfw,
		ResourceTypeName:             collector.Cloudfw,
		ResourceGroupType:            constant.NET,
		Desc:                         `https://api.aliyun.com/api/Cloudfw/2017-12-07/DescribeAssetList?tab=DEBUG&params={%22CurrentPage%22:%221%22,%22PageSize%22:%22100%22}`,
		ResourceDetailFuncWithCancel: GetInstanceDetail,
		Dimension:                    schema.Global,
	}
}

func GetInstanceDetail(ctx context.Context, cancel context.CancelFunc, service schema.ServiceInterface, res chan<- any) error {

	cli := service.(*collector.Services).Cloudfw
	direction := []string{"in", "out"}
	for _, d := range direction {
		page := 1
		size := 50
		count := 0
		for {
			select {
			case <-ctx.Done():
				log.GetWLogger().Error("time out !!! please check your code")
				return nil
			default:
				req := &cloudfw20171207.DescribeControlPolicyRequest{}
				req.CurrentPage = tea.String(strconv.Itoa(page))
				req.PageSize = tea.String(strconv.Itoa(size))
				req.Direction = tea.String(d)
				resp, err := cli.DescribeControlPolicyWithOptions(req, collector.RuntimeObject)
				if err != nil {
					cancel()
					return err
				}

				bd := resp.Body
				count += len(bd.Policys)
				req.PageSize = tea.String(strconv.Itoa(size))
				for i := 0; i < len(bd.Policys); i++ {
					res <- Detail{
						Policy: bd.Policys[i],
					}
				}
				if bd.TotalCount != nil && strconv.Itoa(count) >= *bd.TotalCount {
					cancel()
					return nil
				}
				page += 1
				req.CurrentPage = tea.String(strconv.Itoa(page))
				time.Sleep(1 * time.Second)
			}
		}
	}

	return nil
}

type Detail struct {
	Policy *cloudfw20171207.DescribeControlPolicyResponseBodyPolicys
}

Precautions

the loop exit condition is wrong, and the request cannot exit all the time (please make sure that the code on the commit can exit, otherwise the request will be blocked) How to Test
cloud product configurations that do not distinguish between regions _Dimension_for Regional
cloud products only exist in some regions, but regions are not specified in the Resource definition
other non-standard code

❓QA

How to Start Only Collector of Alibaba Cloud Platform

just enter the alicloud directory, and the other steps are the same as the process 1.1 above.
